Air Flow Management System
Floor Grommets

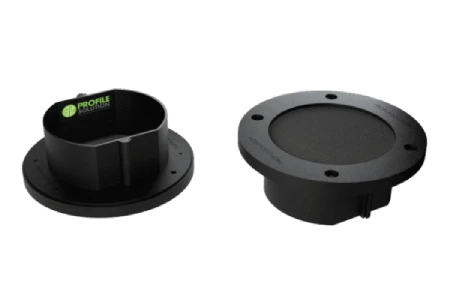

- In traditional data centres with raised floors, most structural cabling and power lines run through the plenum beneath the floor. Multiple cutouts are created to connect these cables to server racks, leading to air leakage and loss of cold air, which reduces the efficiency of data center cooling and overall operations.
- Our surface Pro-Locks help operators seal these gaps effectively. Made from UL 94 V0 grade plastic components, these flame-retardant solutions are specifically designed for data center infrastructure applications, ensuring improved airflow management and energy efficiency.
Supply Air Grill

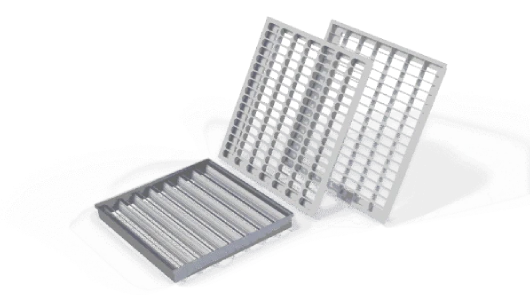

- Air grill tiles made of mild steel offer a point load capacity of 500 kg, tested and certified by third-party agencies. They are available with open surface areas ranging from 45% to 82%. These tiles are equipped with gear-type opposed blade volume control dampers for precise control of data center air flow and underfloor pressure.
- We also manufacture customized air grills for non-standard floor grid sizes, allowing clients to tailor designs based on specific requirements. Key technical specifications of the supply air grill tiles are provided below, supporting efficient data center airflow management and data center cooling.
Server Rack Blanking Panels
-
Pro-Fill blanking panels are easy-to-use, tool-free components designed for standard 19” server rack channels in compliance with EIA-310 standards. Pro-Fill is available in three variants:
- 1U Pro-Fill
- 2U Pro-Fill Eco Series.
- 1U Pro-Fill Eco Series
The 1U Pro-Fill features a curved design that compresses when installed in stacked positions, ensuring maximum air sealing to effectively separate hot and cold air zones. The Pro-Fill Eco Series offers a modular design, where a 2U blanking panel can be split into two 1U panels, supporting efficient data center airflow management and improved data center cooling.
Pro-Active Tile
-
Pro-Active floor tile is a powered airflow enhancement solution designed to deliver chilled air precisely where it is needed within data centers, while efficiently removing heated exhaust air back to computer room air conditioners (CRACs).
-
Pro-Active top-of-the-line models are thermostatically controlled using integrated temperature sensors, ensuring optimized data center airflow management and improved data center cooling performance.
Pro-Active floor tile is a powered airflow improvement product that move chilled data center air to precisely where it is needed the most, and remove heated exhaust air directly back to your computer room air conditioners (CRACs). Pro-Active floor Top of the line models are thermo statically controlled by the included temperature sensors
- Easy To Install
- Installation requires no downtime or movement of racks.
- Each Pro-Active floor system can improve cooling in 1-3 racks in some conditions.
- Several Pro-Active floor system can be used at the same time to cool larger areas.
- Dimensions : 565mm x 565mm x 95 mm (Depends on configuration selected).
- Weight: 14.5kg (Depends on configuration selected).
- Max CFM : 800-2200 (Depends on configuration selected).
Pac Return Hood
PAC Hood or PAC Extensions help isolate hot and cold air within data centers, improving overall data center cooling efficiency. CRAC extensions are commonly used to increase the Delta T across cooling units by drawing warmer air from higher levels within the room, supporting effective data center airflow management.
The Pac Hood / Pac Extensions help isolate hot and cold air in the data center, further improving cooling efficiency. CRAC Extensions are standard practice for increasing the Delta-T across cooling units by taking in warmer air from a higher elevation in the room.
- Easy To Install
- Installation requires no downtime or movement of PAC.
- The Pac hood is made Up of Fire-retardant Transparent Polycarbonate sheets.
- Light Weight Aluminum Framing is done to Provide Sturdiness.
Vertical Rack Blanking Panels
Vertical blanking panels provide an effective solution to cover the side gaps between server racks and the rack edges at the front. This helps improve airflow to installed equipment and reduces internal hot air recirculation within the rack, enhancing overall data center airflow management and data center cooling efficiency.
Vertical Blanking panels, provide a way to cover the Rack Vertical Side Space between server rack and edge of racks space in the front of a rack, resulting in improved airflow to the installed equipment and reducing internal hot-air re-circulation within the rack.
- 16Configured to Blank Verical Space on Both Sides of Racks.
- Stops Short Circulation of air From the side of racks.
- Available for all major Brand Racks.
- Made Of High-Grade ABS Plastic.
Thermal Ducting Panels
As heat loads increase, the demand for efficient cooling also rises in data centers. Hot air tends to recirculate over the cabinet, causing temperatures in the upper sections to increase.
High heat loads can be effectively managed by eliminating hot air recirculation using ducted hot air return systems, improving data center airflow management and overall data center cooling performance
As heat loads increase, so does the demand for cold air. Hot air re-circulates over the cabinet causing temperatures near the top half of the cabinet to increase. Manage high heat loads by eliminating hot air re-circulation over the cabinet with a ducted hot air return
- Can Be installed to All Major rack Brands.
- Installation requires no downtime or movement of racks.
- As hot air is isolated in the duct, you can place vented access floor tiles anywhere in the room to deliver additional cold air to equipment.
- The Pac hood are made Up of Fire retardent Transparent Polycarbonate sheets.
- Light Weight Aluminium Framing is done to Provide Sturdiness.
Return Air Ceiling Grill Tile
Our return air ceiling grill tile airflow management solution plays a key role in designing energy-efficient data centers. It is designed to utilize the natural rise of hot air for effective heat management. The egg crate ceiling grille works efficiently with hot aisle containment systems, allowing hot exhaust air from IT equipment to pass into the false ceiling void and be redirected back to the PAC unit, improving overall data center cooling.
Our Return Air Ceiling Grill Tile airflow management solution is an important tool in helping design an energy efficient data center. It is designed to work with the natural properties of rising hot air. Egg Crate Ceiling Grille is used most effectively with hot aisle containment to allow hot IT equipment exhaust air to pass into the False-ceiling void and be directed back to the PAC unit.
- Easy To Install.
- Installation requires no downtime or movement of racks. Egg Crate Ceiling Grille can improve the return Hot air qualtiy to the PAC Unit.
- Several Ceiling Grille system can be used at the same time to Get Good Return air from larger areas.
Floor Grommets
- For a traditional data centers with a raised floor , most of the structural cabling or power lines are run between plenum below raised floor. To connect these cables to server racks, multiple cutouts are made which causes major leakages and loss off cold air. Hampering the efficiency of the data center operation.
- Our surface Pro-Locks helps data center operators to seal such gaps efficiently. Made with UL-94-V0 grade plastic components, our products are flame retardants and specifically made for data center application only.
Supply Air Grill
- Air grill tiles made of mild steel with 500kg point load capacity tested with third party certification. Available from 45% open surface area to 82% open surface area. Air grill tiles comes with gear type opposed blade volume control dampers for better control on air flow and under floor pressure.
- We also manufacture customised air grills required for non standard floor grid size. Our client can customize the tile designs as per their requirement. Few of the technical specifications of the supply air grill tiles are available below.
Server Rack Blanking Panels
Pro-Fill blanking panels are easy to use and tool free component designed specifically for standard 19” server rackchannels complying to EIA-310 standards. The Pro-Fill are available in 3 variants.
- 1U Pro-Fill
- 2U Pro-Fill Eco Series.
- 1U Pro-Fill Eco Series
1U Pro-Fill has specific curved design to compressed when installed in stacked position above each other providing maximum air sealing effect to completely bifurcate the hot and cold side of the servers. Pro-Fill Eco series has a modular design, where a 2U blanking panels can be detached from the middle to make 2 nos. of 1U blanking panels.
Pro-Active Tile
Pro-Active floor tile is a powered airflow improvement product that move chilled data center air to precisely where it is needed the most, and remove heated exhaust air directly back to your computer room air conditioners (CRACs). Pro-Active floor Top of the line models are thermo statically controlled by the included temperature sensors
- Easy To Install
- Installation requires no downtime or movement of racks.
- Each Pro-Active floor system can improve cooling in 1-3 racks in some conditions.
- Several Pro-Active floor system can be used at the same time to cool larger areas.
- Dimensions : 565mm x 565mm x 95 mm (Depends on configuration selected).
- Weight: 14.5kg (Depends on configuration selected).
- Max CFM : 800-2200 (Depends on configuration selected).
Pac Return Hood
The Pac Hood / Pac Extensions help isolate hot and cold air in the data center, further improving cooling efficiency. CRAC Extensions are standard practice for increasing the Delta-T across cooling units by taking in warmer air from a higher elevation in the room.
- Easy To Install
- Installation requires no downtime or movement of PAC.
- The Pac hood is made Up of Fire-retardant Transparent Polycarbonate sheets.
- Light Weight Aluminum Framing is done to Provide Sturdiness.
Vertical Rack Blanking Panels
Vertical Blanking panels, provide a way to cover the Rack Vertical Side Space between server rack and edge of racks space in the front of a rack, resulting in improved airflow to the installed equipment and reducing internal hot-air re-circulation within the rack.
- 16Configured to Blank Verical Space on Both Sides of Racks.
- Stops Short Circulation of air From the side of racks.
- Available for all major Brand Racks.
- Made Of High-Grade ABS Plastic.
Thermal Ducting Panels
As heat loads increase, so does the demand for cold air. Hot air re-circulates over the cabinet causing temperatures near the top half of the cabinet to increase. Manage high heat loads by eliminating hot air re-circulation over the cabinet with a ducted hot air return
- Can Be installed to All Major rack Brands.
- Installation requires no downtime or movement of racks.
- As hot air is isolated in the duct, you can place vented access floor tiles anywhere in the room to deliver additional cold air to equipment.
- The Pac hood are made Up of Fire retardent Transparent Polycarbonate sheets.
- Light Weight Aluminium Framing is done to Provide Sturdiness.
Return Air Ceiling Grill Tile
Our Return Air Ceiling Grill Tile airflow management solution is an important tool in helping design an energy efficient data center. It is designed to work with the natural properties of rising hot air. Egg Crate Ceiling Grille is used most effectively with hot aisle containment to allow hot IT equipment exhaust air to pass into the False-ceiling void and be directed back to the PAC unit.
- Easy To Install.
- Installation requires no downtime or movement of racks. Egg Crate Ceiling Grille can improve the return Hot air qualtiy to the PAC Unit.
- Several Ceiling Grille system can be used at the same time to Get Good Return air from larger areas.
